The whole site, one power path.
Every eVAULT project is the same chain of blocks between the battery and the grid. Toggle the flow, walk the path, or open any block to see what it does and how it connects. Charge fills the containers; discharge sends stored energy back out.

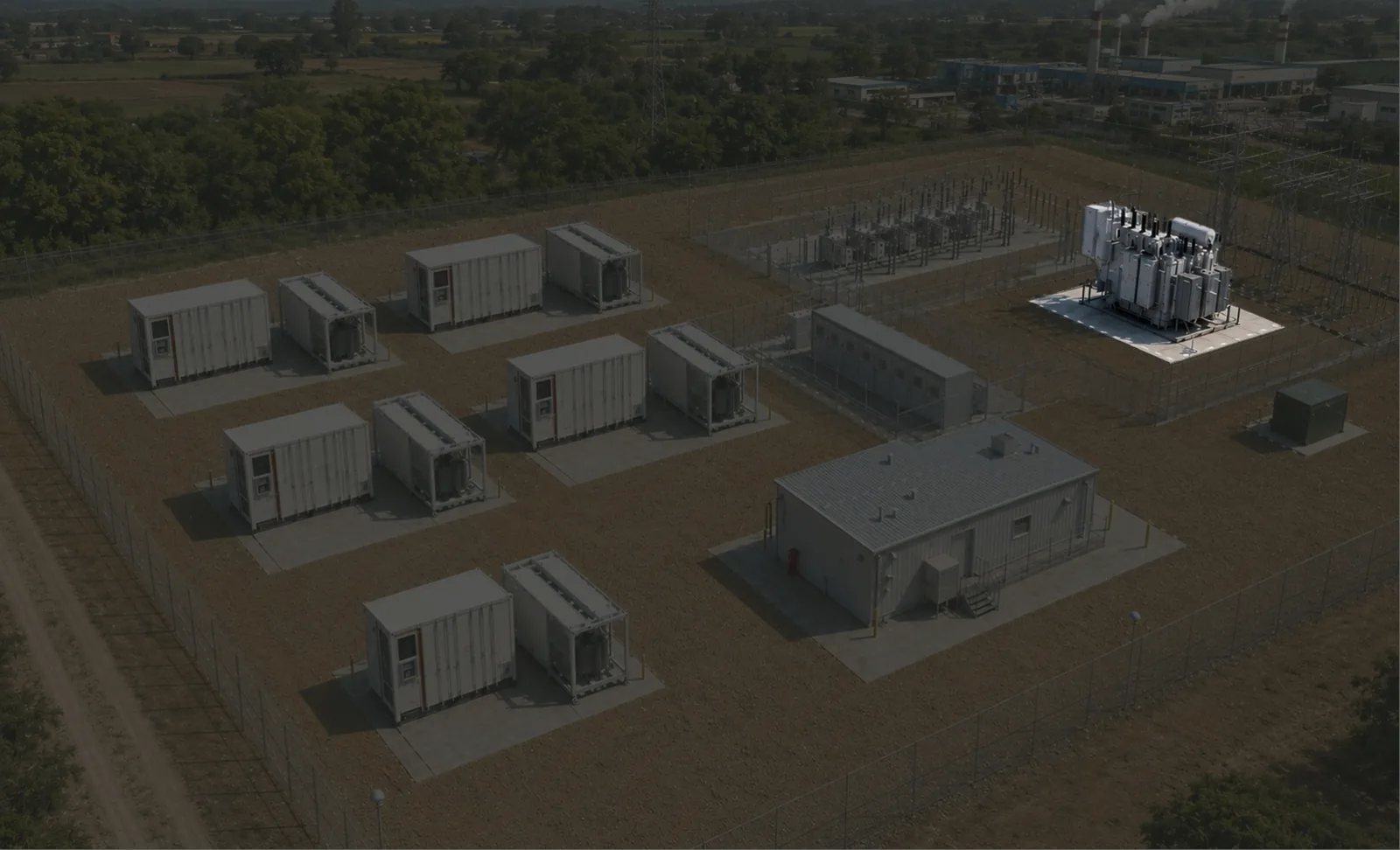

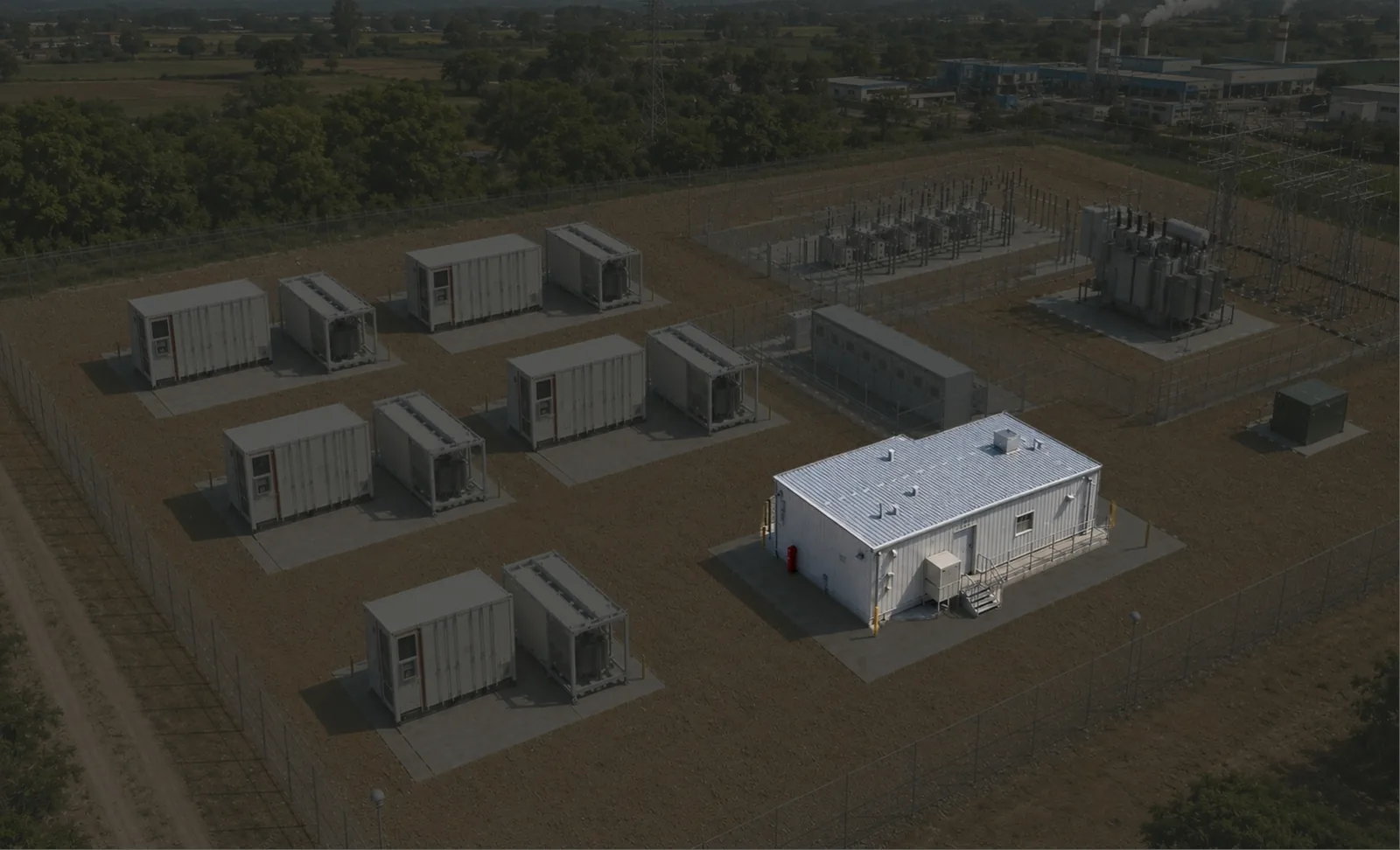

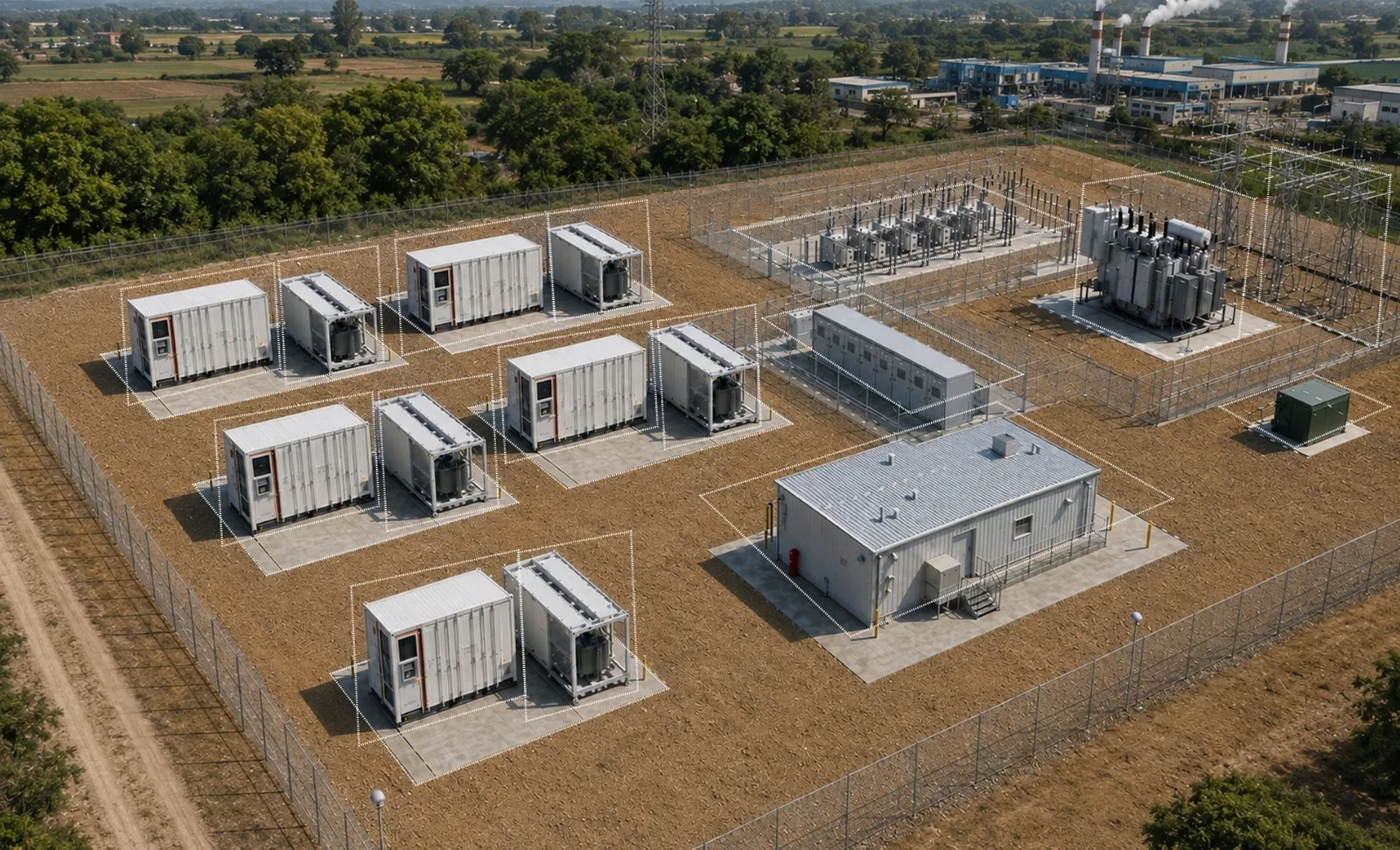

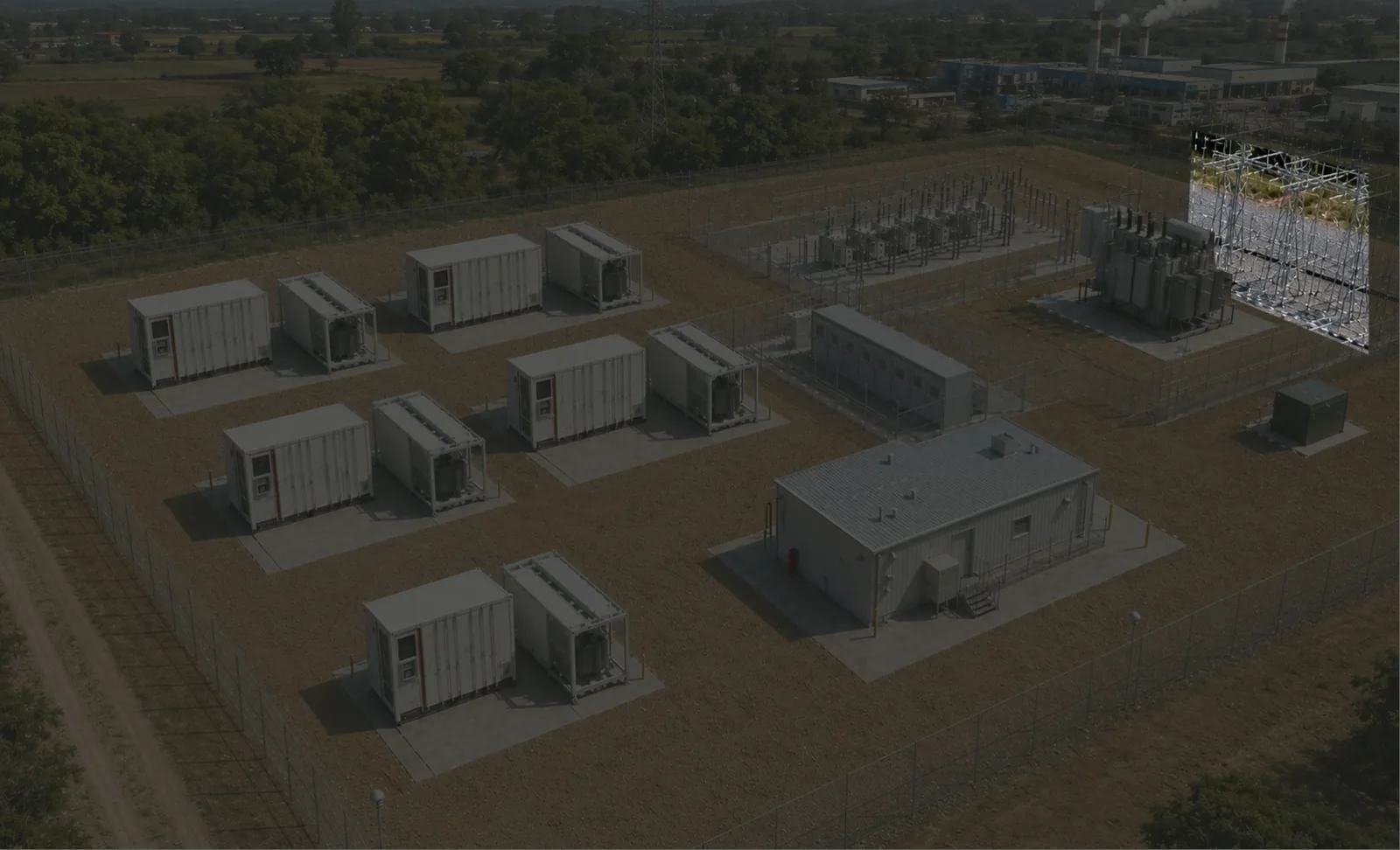

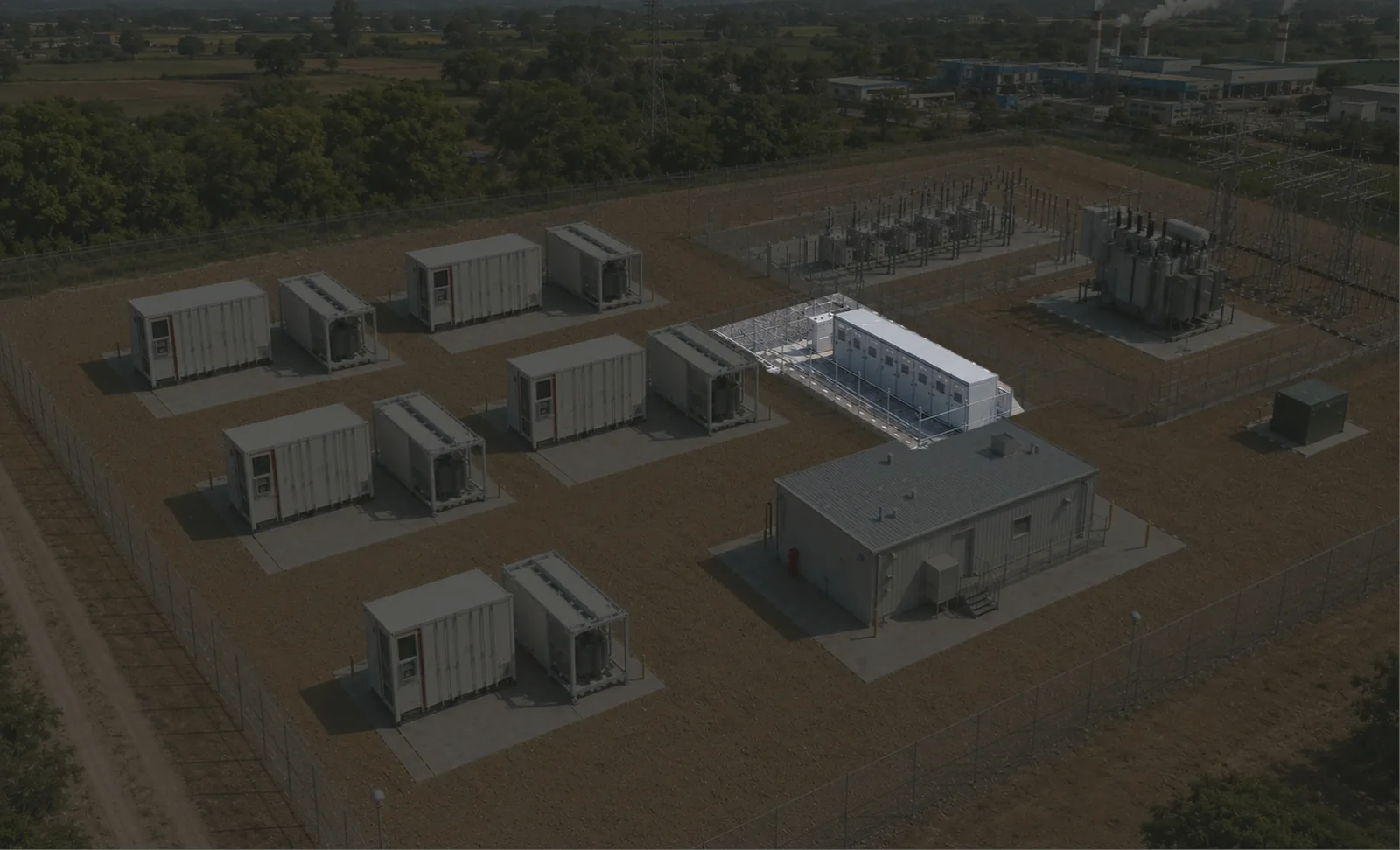

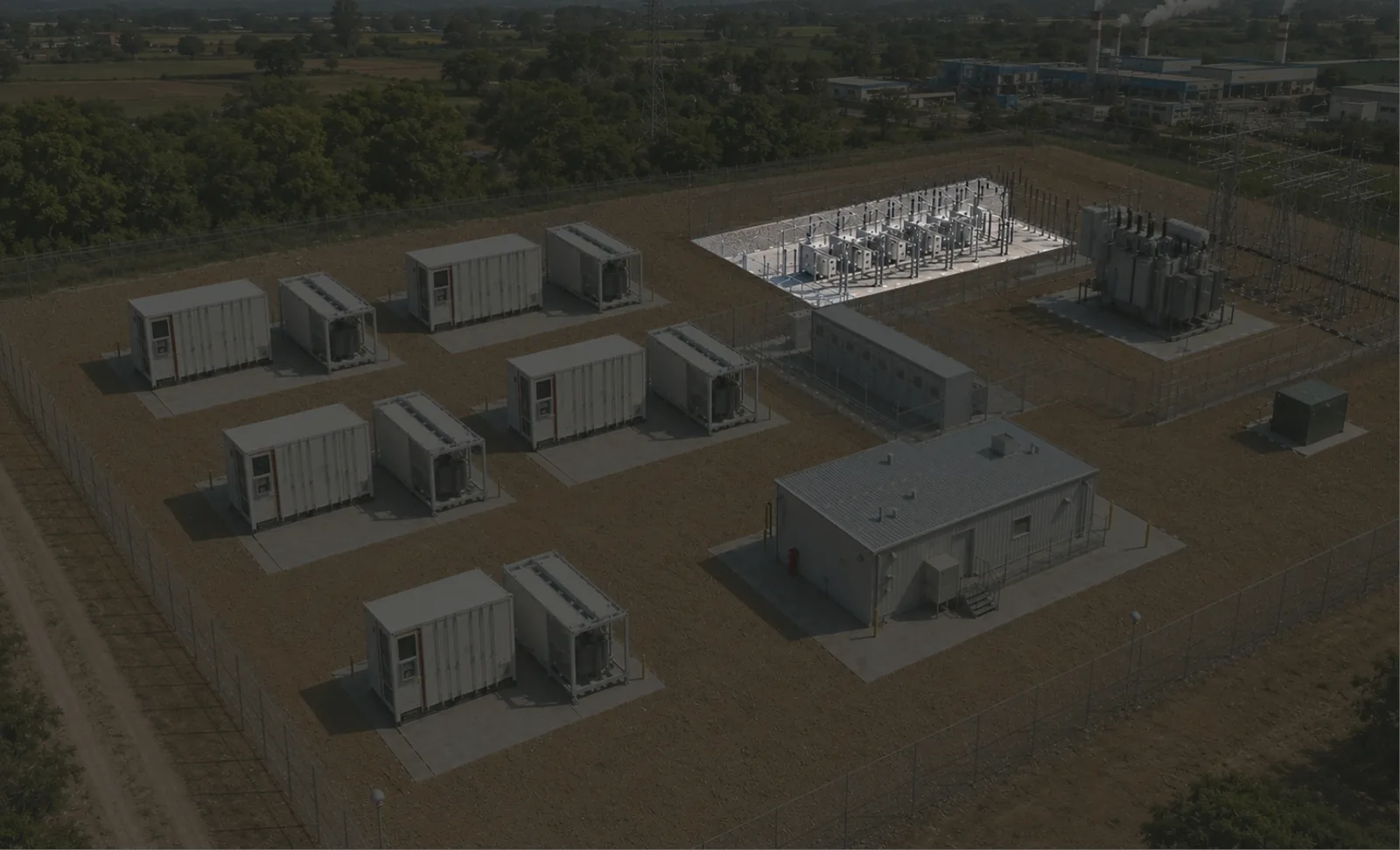

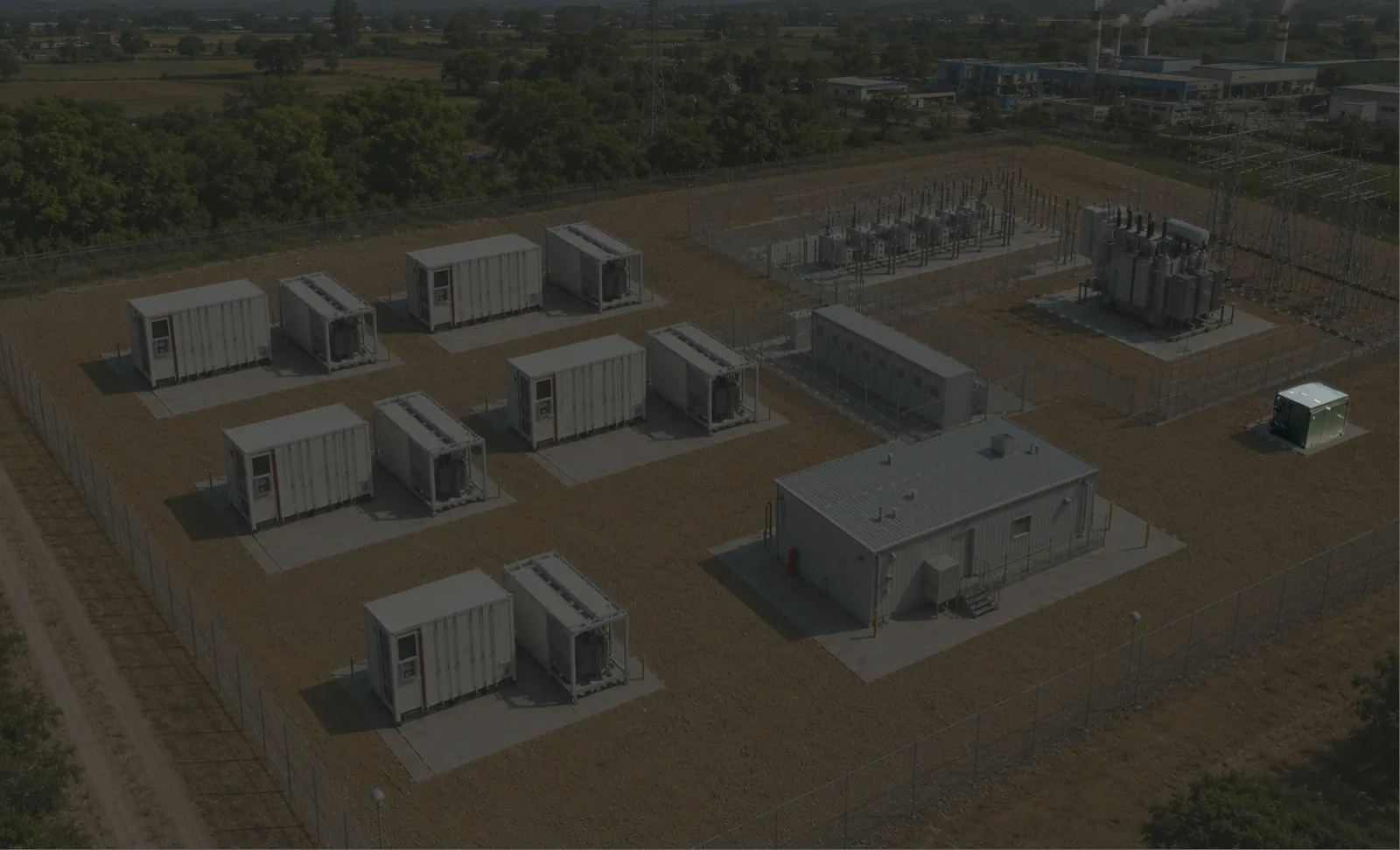

BESS site — interactive component map
- ENERGY STATION
Select a block above, run Walk the path, or pick a flow direction to trace how energy moves through the site.
This is a block diagram
It answers what the parts are and how they connect, functionally. It is not a single line diagram — it does not show every breaker, busbar rating or protection scheme, which live in the project's electrical drawings.
Where eVAULT fits

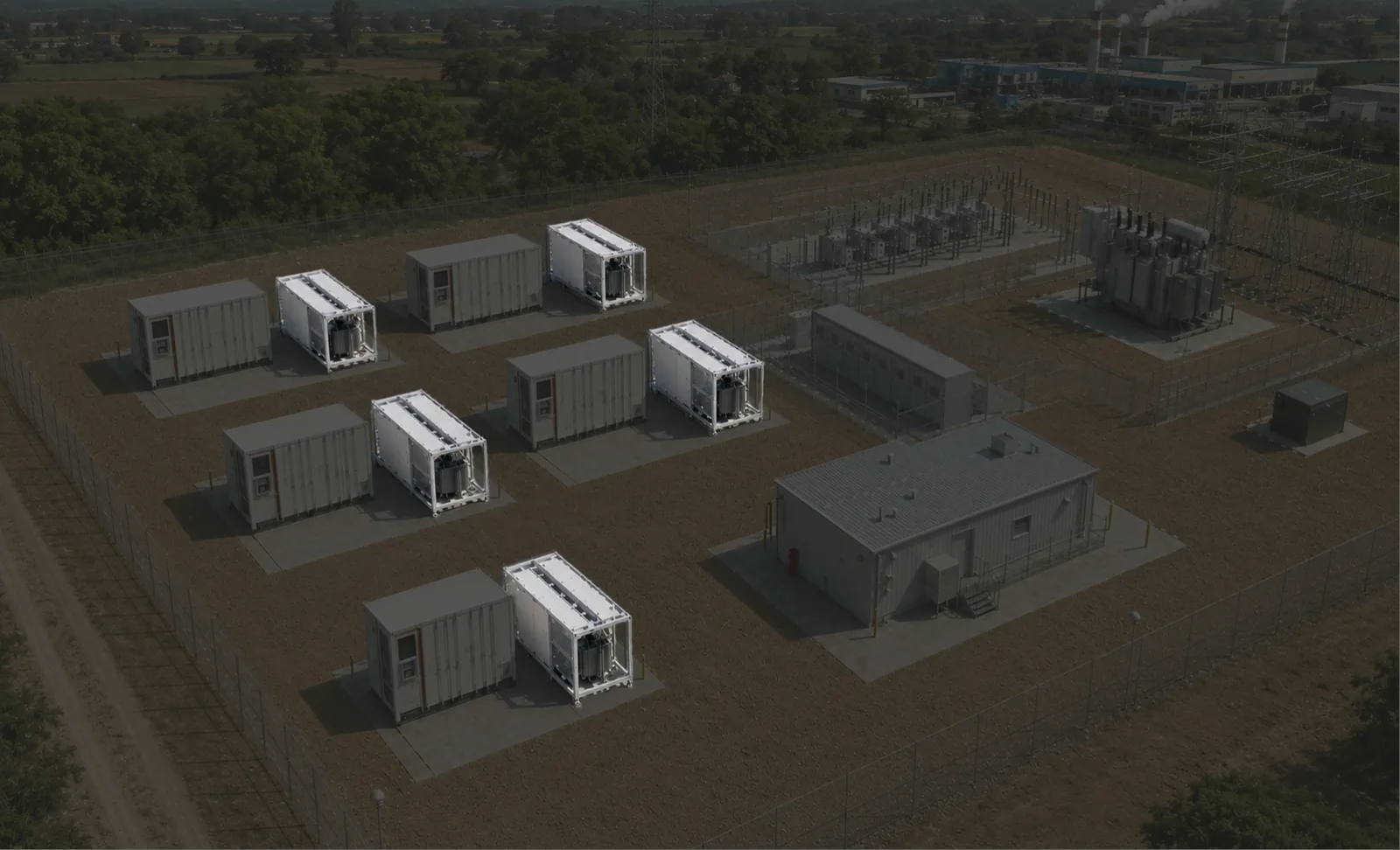

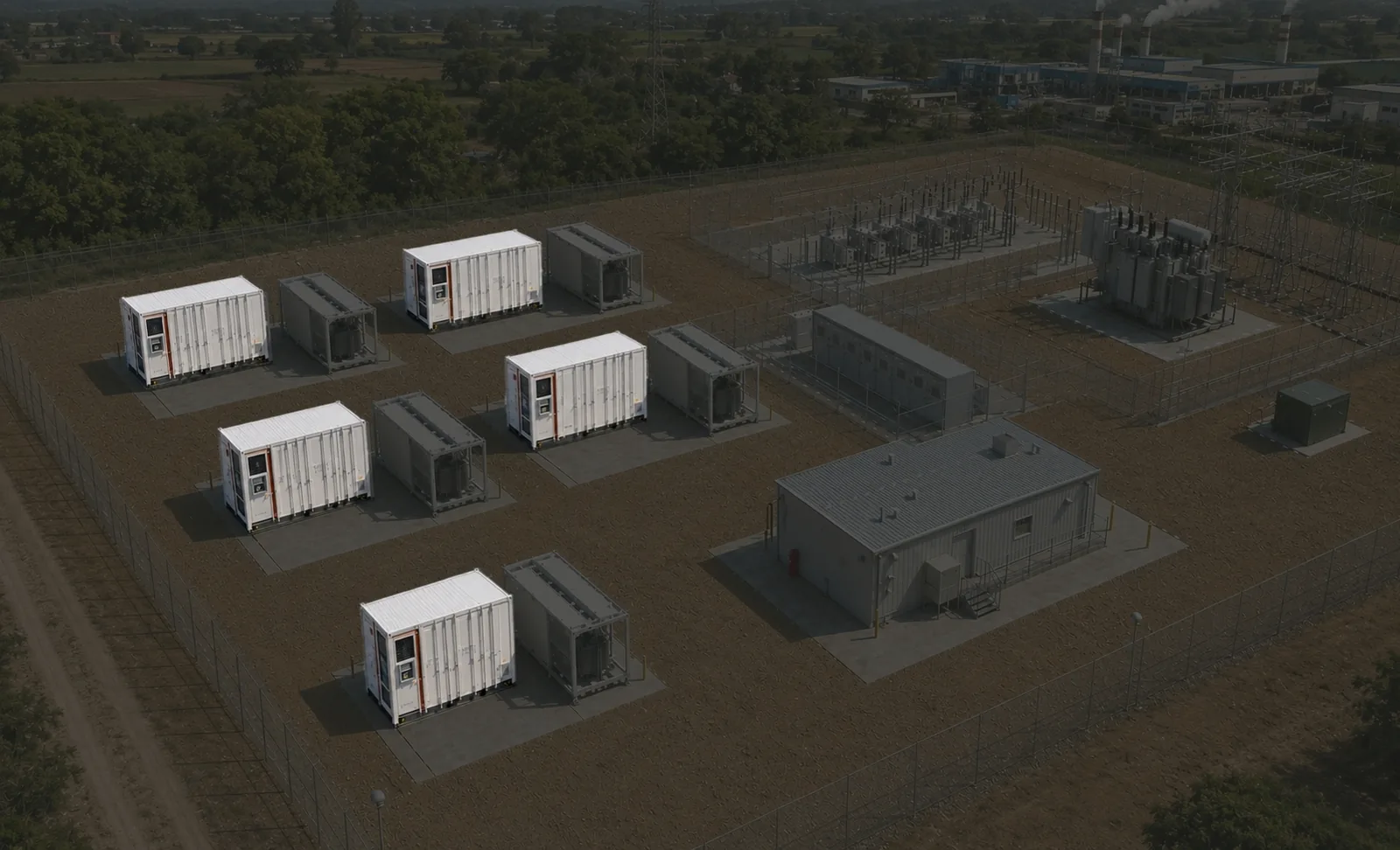

The CORE 261, CORE 418 and TITAN 5000 are the battery containers at the head of the path. Everything to their right — conversion, combination, voltage step up, interconnection — is the balance of plant that turns a row of containers into a grid asset.
