1044 kWh
CORE
<20ms
Seamless Switching
1000 kW
STS Power
Diesel + PV
Dual Power Interfaces
≥ 8,000
Cycle Life

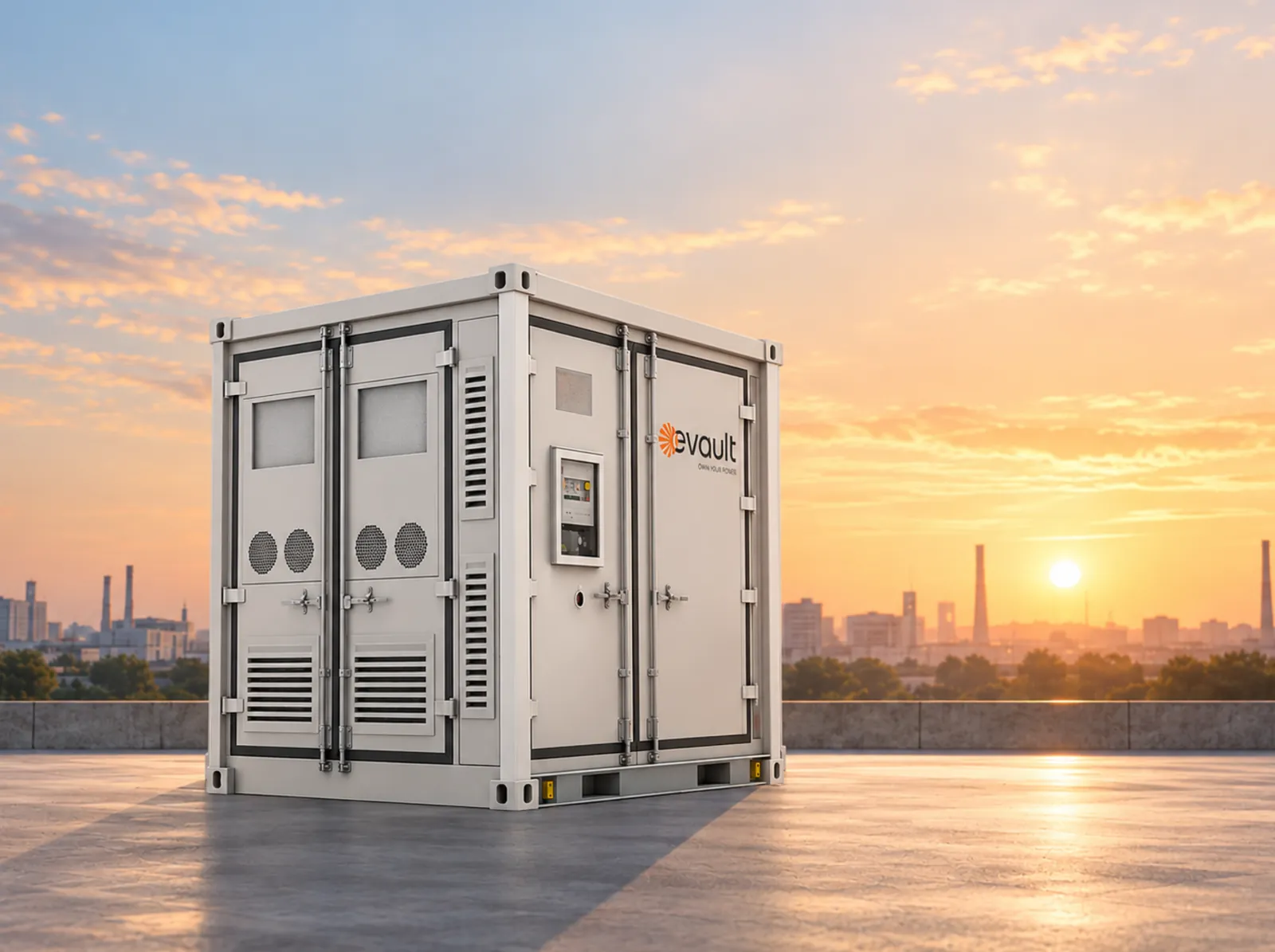

Liquid-Cooled Energy Storage System
A highly integrated, standard 10-foot containerized energy storage system designed for commercial and industrial applications, with a rated AC output voltage of 400V. This system is capable of on/off-grid switch functionality, and the STS and <20ms seamless switching feature is available as an optional upgrade, providing strong off-grid load capability. It is equipped with dedicated interfaces for diesel generator connection and PV inverter connection, enabling multiple power sources to supply the system. This flexible design allows the system to adapt to various application scenarios and diverse user requirements.
DC Side
Cell Type
LFP / 314 Ah
Pack Configuration
52.2 kWh / 1P52S
System Configuration
1044 kWh / 4P260S
Rated DC Voltage
832 V
DC Voltage Range
728 ~ 936 V
Max. Charge/Discharge Rate
0.5 P
Max. Depth of Discharge
100% (25 ± 2°C)
Power Source
Rated ESS Power
500 kW
Rated AC Voltage
400 V
AC Voltage Range
± 15%
Grid Type
3W + N + PE
Rated Frequency
50 Hz / 60 Hz
Rated STS Power
1000 kW
On/Off-grid Switching
< 20 ms
Power Factor
0.99 / -1 ~ +1
THDi
< 0.5% Ipn
Max. PV Inverter Input Current
800 A
Max. Diesel Generator Input Current
800 A
Backup
Max. Backup Load Port Current
800 A
Max. Backup Load Power*
350 kW (70% of Rated Output Power)
General
Cycle Life
≥ 8,000 cycles
Communication
Modbus TCP/IP
Fire Suppression System
Aerosol system + Water spray system
Ingress Rating
IP55
Cooling
Liquid cooling + Forced air cooling
Operating Temperature
-25°C ~ 55°C (Derating after 45°C)
Anticorrosion Rating
C4 (C5 optional)
Humidity
0 ~ 95% RH (non-condensing)
Noise
≤ 80 dB
Altitude
3000 m (Derating above 2000 m)
Dimensions (W*D*H)
2,991 * 2,438 * 2,896 mm
Weight
14 t
